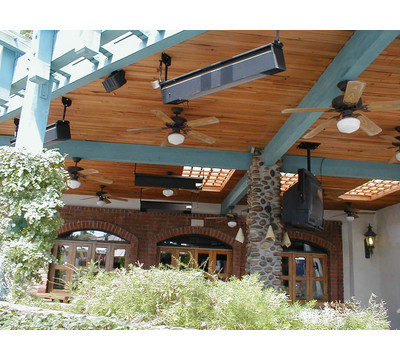

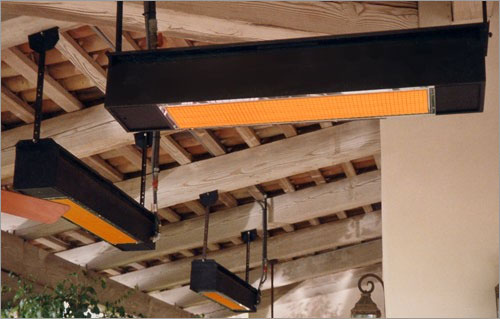

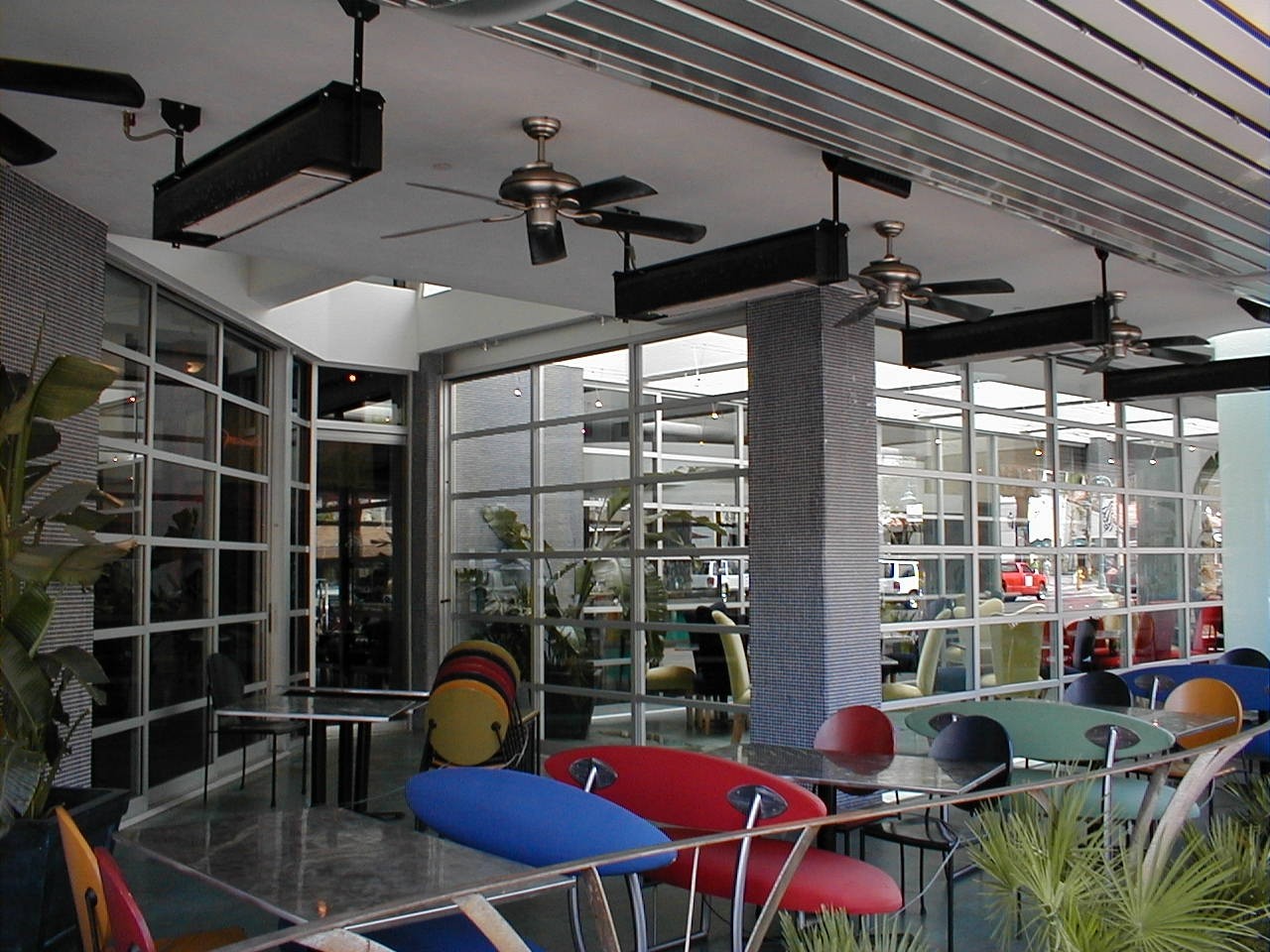

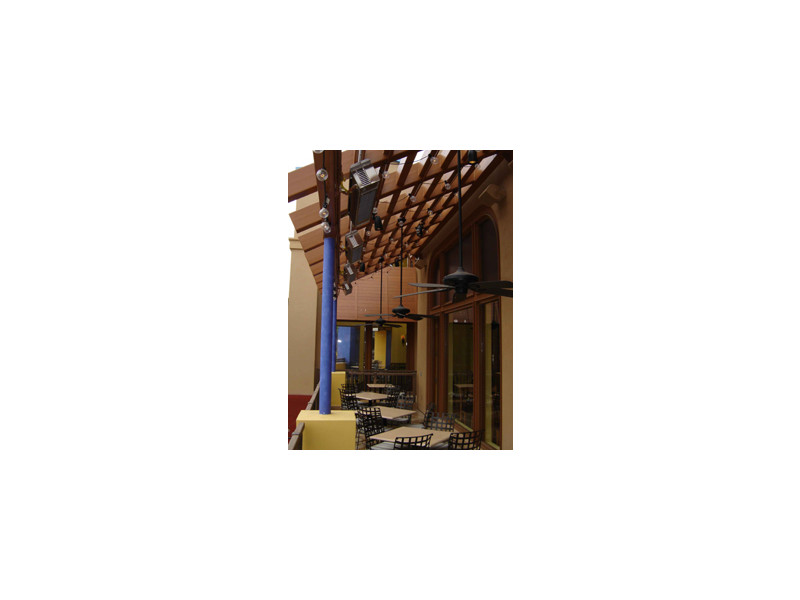

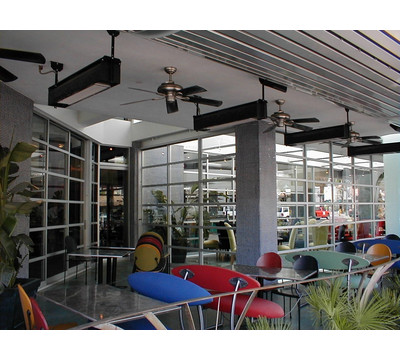

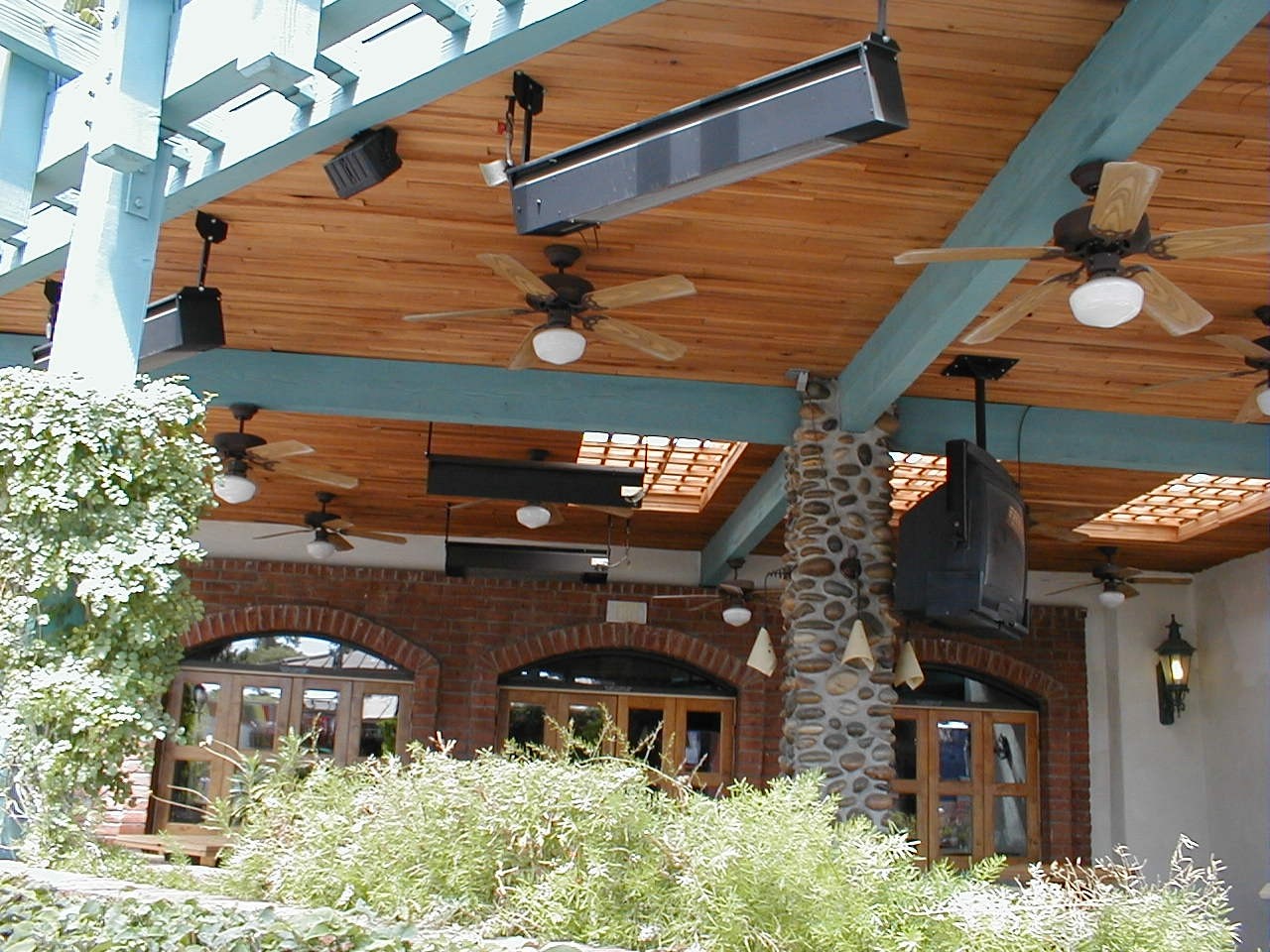

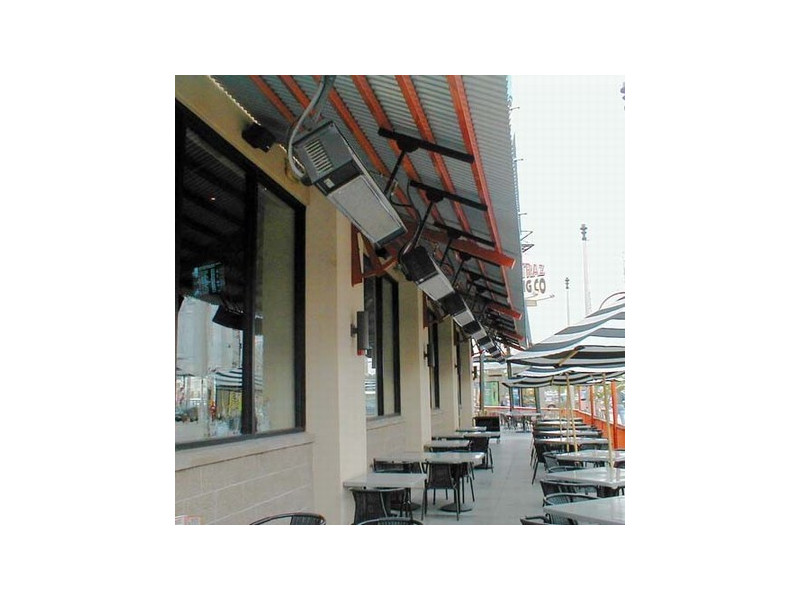

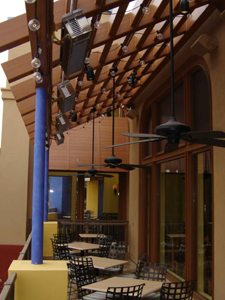

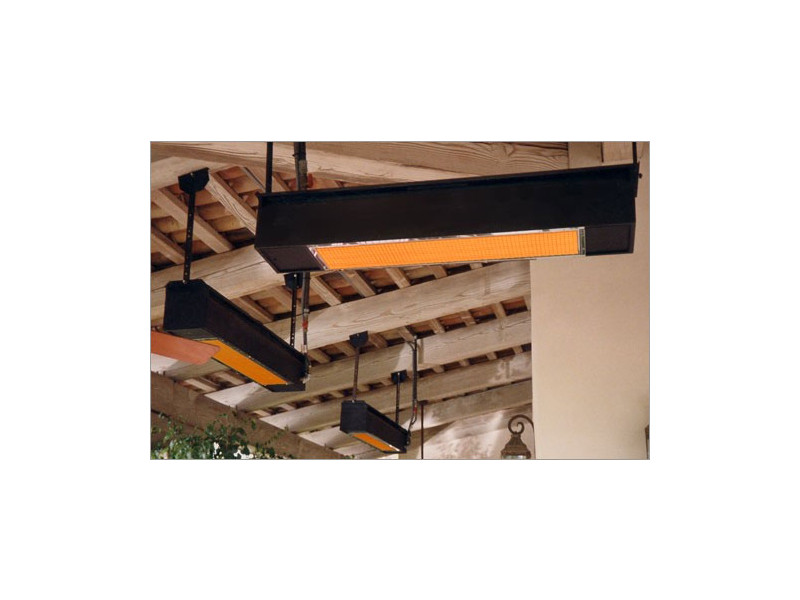

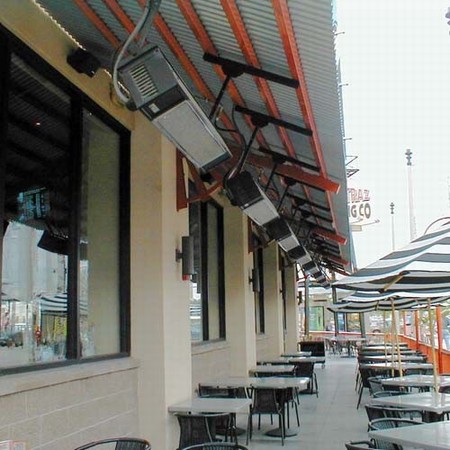

The best selling restaurant model over the last decade, the S25 is Sunpak's tried and true model designed for use in moderate climates. Its BTU/hr. rating of 25,000 heats up to 100 sq. ft., perfect for 3-5 tables of guests or customers. Its designed for both indoor and outsoor use - sidewalk awnings, vestibules, mezzanines, patios, and more. Choose from natural gas or liquid propane and hook it up to a light switch or timer for easy on/off control.
Check the box next to an accessory to add it to your order.
Applications: Ideal for wind protected areas, Rain protected
Construction:Black Powder Coated: Aluminized steel body and aluminum face grill Stainless Steel: Stainless steel body and aluminum face grill

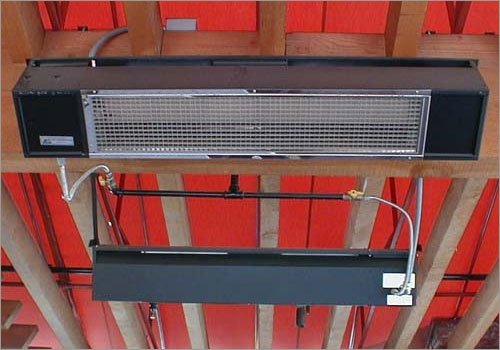

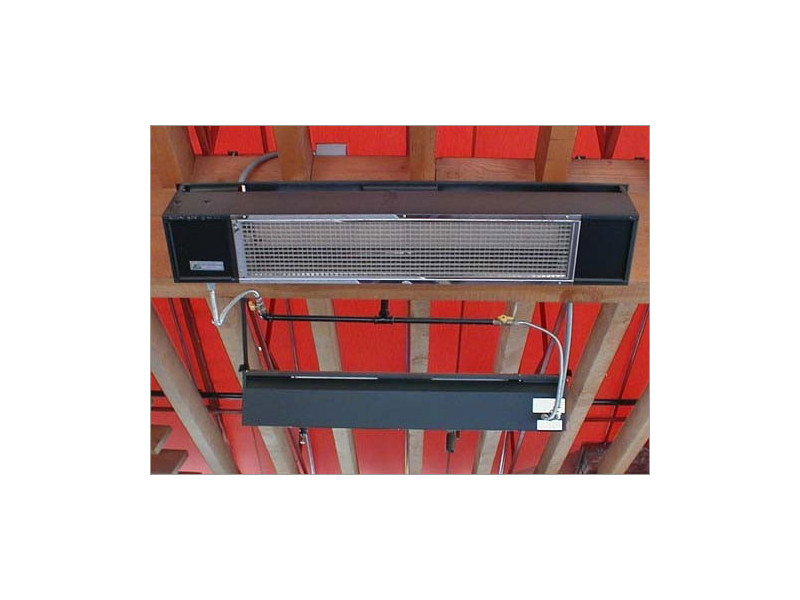

Mounting Height: 7.5 - 9.5 ft
Width: 8 in
Heating Range: 100 sq. ft.
Mounting Angle: 0 - 30 deg
Clearance to Combustibles:Side: 24 inches for 0 to 30 degrees Rear: 12 inches for 0 degrees, 8 inches for 30 degrees Ceiling: 9 inches for 0 degrees, 14 inches for 30 degrees Below: 48 inches for 0 to 30 degrees
Height: 8 in
Manifold Operating Pressure:Natural Gas: 5 inch WC Liquid Propane: 10 inch WC
Minimum Inlet gas supply pressure:Natural Gas: 6 inch WC Liquid Propane: 11 inch WC
Maximum Inlet gas supply pressure:Natural Gas: 1/2 inch PSIG Liquid Propane: 11 inch PSIG
Gas Inlet Connection: 1/2 inch gas pipe, 1/8 inch NPT

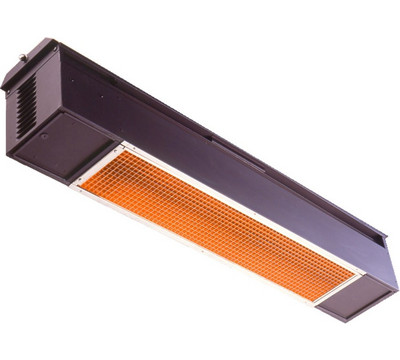

The best selling restaurant model over the last decade, the S25 is Sunpak's tried and true model designed for use in moderate climates. Its BTU/hr. rating of 25,000 heats up to 100 sq. ft., perfect for 3-5 tables of guests or customers. Its designed for both indoor and outsoor use - sidewalk awnings, vestibules, mezzanines, patios, and more. Choose from natural gas or liquid propane and hook it up to a light switch or timer for easy on/off control.

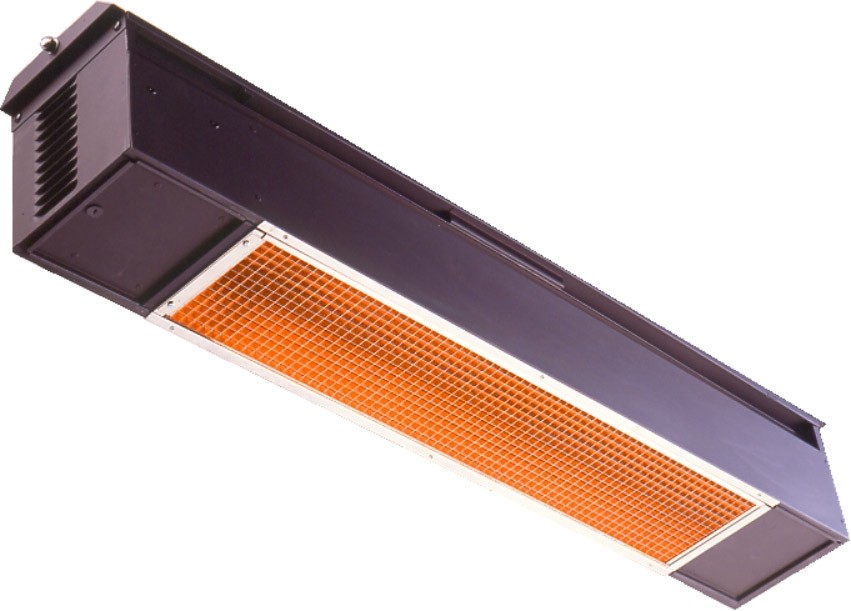

Features:
Black Aluminized or Stainless Steel finish
Gas-fired infrared heater
Natural or Propane gas
Components include 25M BTU heater head, mounting kit and transformer
Slim profile
Decorative safety grille
Direct spark ignition provides easy lighting with a touch of the finger
In a moderate climate it is expected to raise temperature up to 10 degree Fahrenheit
Coverage varies based on ambient temperature, wind chill, mounting height, and tilt angle of the heater
Enclosure plus aluminum face grill provides resistance to wind and rain
Suitable for indoor or outdoor operation
Please Note: All heaters are non vented and must have proper ventilation clearances from combustible surfaces (Check local codes for installation)
Input rating of 25,000 BTU/hr
Covers a 10' x 10' area
0 to 30 degree mounting degree gives versatility to fit easily into a variety of patio situations
100% safety shut-off
Suitable for patios with a medium ceiling height of 7 1/2 to 9 1/2 feet
CSA, AGA approved for indoor and outdoor use
90 day commercial and one year residential warranty
Patio Supplies is proud to offer fine products from Sunpak.
Sunpak Infra-Red Radiant was established in 1986. It is a wholesale distributor for many national brand radiant-heat products and specializes in high-powered, commercial patio heaters.
Warranty
Main Item
3 year manufacturer's warranty on ceramic burners for residential and commercial use
1 year manufacturer's warranty on all other components for residential and commercial use
